Gutters and Drainage in Florida

Engineered for maximum foundation protection. Most Florida homes shed every drop of roof water straight onto the foundation. We design seamless gutters and solid discharge systems that control the flow, prevent hydrostatic pressure and protect estate homes and commercial buildings for good.

LicensedCertified General Contractor CGC1539326
WarrantyLifetime, transferable
EngineeringBy Foundation Masters

Seamless Gutters ◆ Solid Discharge ◆ Foundation Protection ◆ Since 2015

The Volume

Roof water, by the numbers

A roof is a collector. Every inch of rain that hits it comes off in a few concentrated streams, and without gutters those streams land right at the foundation.

One Inch of Rain

623 gal.

Water coming off every 1,000 sq ft of roof in a one-inch storm.

An Estate Roof

2,494 gal.

Off a 4,000 sq ft roof in that same one-inch storm, about 50 bathtubs.

Hurricane Milton

47,052 gal.

Off that roof from the 18.87 inches that fell at St. Petersburg in October 2024.

Tampa, 2024

200,000 gal.

Off that roof in Tampa’s record year of 80.29 inches of rain.

Basis: 1 inch of rain on 1 sq ft yields 0.623 gallons. Rain totals: AccuWeather, Bay News 9.

“

Why Gutters Matter for Foundations

When rainwater falls off the roof with no control, it saturates the soil around the foundation and allows a water table to form around the structure. Here is the strange part: Florida builders rarely install gutters. The rest of the country uses them, and Florida needs them most.

Once a localized water table develops around a home, it does not go away. That is where hydrostatic pressure comes in. The water table cannot be erased, but it can be controlled with engineered hydraulic systems that manage flow, pressure and discharge.

The Gutters

6-Inch Seamless Aluminum Gutters for Florida Homes

Our 6-inch seamless aluminum gutters are sized for Florida’s intense rainfall and large estate roof areas. They carry up to about 40 percent more water than standard 5-inch gutters, so they do not overflow in a downpour and the water stays off the foundation.

  • Seamless, leak-free runs formed on site
  • Heavy-gauge aluminum for coastal durability
  • Colors and profiles to match the architecture
  • Built to outlast Florida humidity and storms

Typical installed cost: $10 to $15 per linear foot. Roof height, profile and complexity affect the price.

Chart: water coming off a 4,000 square foot roof, 2,494 gallons per inch of rain, 47,052 gallons in Hurricane Milton and 64,607 gallons in the 2023 Fort Lauderdale storm
Where Most Contractors Fail

Hydraulic Discharge Design for Gutters and Drainage in Florida

Downspouts are pressure lines. French drains are gravity systems. Sump lines are mechanical. Mixing them violates basic hydraulics and guarantees failure in heavy rain.

What Not to Do

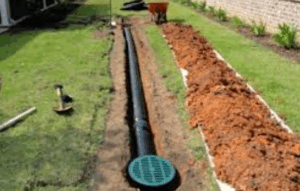

  • Never connect downspouts to French drains.
  • Never tie downspouts into sump discharge lines.
  • Never use perforated pipe for roof runoff.

What To Do Instead

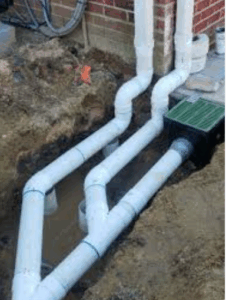

  • From each downspout, run a solid 4-inch PVC discharge line at least 20 feet from the structure to a grate box, splash basin or approved discharge area.
  • If the discharge point is higher than the foundation grade, extend the solid pipe about 18 inches vertically at the downspout to create a hydraulic column. The column builds head pressure and keeps the flow moving.

Typical installed cost for solid 4-inch PVC discharge: about $25 per linear foot. Depth, routing and obstacles affect the price.

This is the hydraulic standard that makes our gutter and drainage systems outperform the rest.

The Code

Florida Building Code & Elevation Requirements

Florida has no dedicated waterproofing code. It relies on elevation and drainage provisions in the building code: the ground must slope away from the foundation, and the foundation must sit above finished grade. See the Florida Building Commission and the Florida Building Code for current language.

We do not just follow code. We design above it, because every Florida site is different: soil type, slope, elevation and coastal or tidal influence change from one property to the next. It takes years of field experience in water hydraulics to read those factors and build systems that work.

Roof to Soil

Complete Florida Foundation Waterproofing & Drainage Systems

No patchwork fixes. We engineer full-system protection from the roof to the soil, controlling water at every level.

I

Seamless Gutters & Downspouts

6-inch seamless aluminum, sized for estate roofs and Florida rain.

II

Solid PVC Discharge

Solid 4-inch lines, a minimum of 20 feet from the structure.

III

Foundation Waterproofing

Perimeter collection, membranes and sealants at the foundation.

Explore
IV

Surface Drainage

Catch basins, grate boxes and engineered surface drainage.

Explore
V

Crawlspace & Basement

Below-grade waterproofing for lower levels, cellars and elevator pits.

Explore
VI

Sump Pumps

Only when mechanical lift is required, with check valves and backup power.

Our perimeter systems, the Foundation Waterproofing & Hurricane-Resistant System, are built to meet or exceed the performance expected under the International Building Code in northern states. Florida lacks explicit waterproofing standards; we deliver the protection those codes expect.

Questions

Gutters & Drainage FAQ

How much do gutters cost in Florida?

Seamless 6-inch aluminum gutters typically run $10 to $15 per linear foot installed. Solid 4-inch PVC discharge lines run about $25 per linear foot. Roof height, profile, depth, routing and obstacles affect the price.

Can I connect my downspouts to a French drain?

No. Downspouts are pressure lines and French drains are gravity systems. Sending roof water into a French drain fills it from above while groundwater fills it from below, and it holds water against the foundation.

How far should downspouts discharge from the house?

We run a solid 4-inch PVC line at least 20 feet from the structure to a grate box, splash basin or approved discharge area, with a hydraulic column at the downspout when the discharge point sits higher than the foundation grade.

Why are 6-inch gutters better than 5-inch in Florida?

A 6-inch gutter carries up to about 40 percent more water than a 5-inch gutter. On a large estate roof in a Florida downpour, that is the difference between water in the gutter and water at the foundation.
